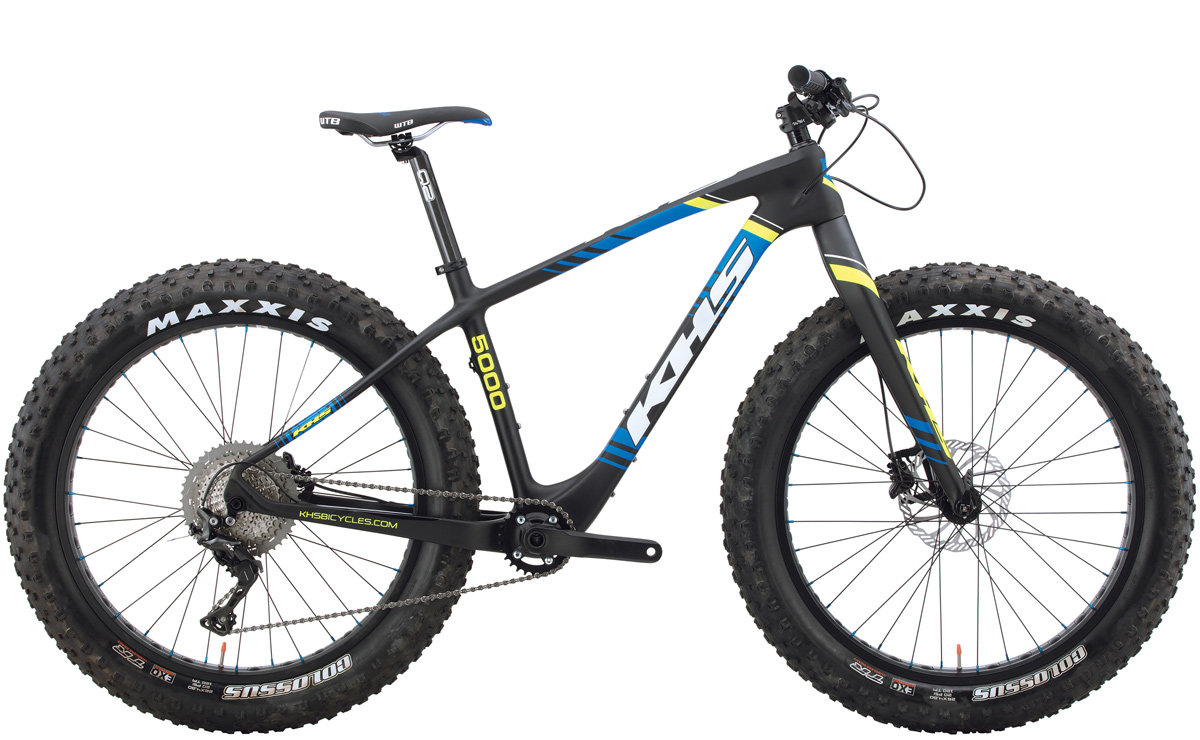

KHS 4 Season 5000

KHS 4 Season 5000
This item is currently not available.

Details

When you want all-out performance no matter what the conditions bring, you need the 4 Season 5000 from KHS. Its high-modulus full carbon frame and fork are built to make you faster over all types of terrain, and, with massive 4.8-inch wide Maxxis Colossus tires, there's nothing between you and personal bests on every ride. A Shimano XT 11-speed drivetrain provides excellent shifting and gear range for tackling technical climbs as well as fast flat sections, and Shimano hydraulic disc brakes ensure reliable braking power is on tap at all times. Fully internal cable routing aids your endeavors by keeping the shifter cables free from muck so you can plow through mud and snow without worry, and a carbon seatpost helps keep this build race-ready.

Specs

Frame KHS High Modulus MSD Full Carbon w/1.5” Tapered Headtube, Disc Only, Internal Cable Routing
Fork High Modulus Full Carbon Straight Blade
Headset FSA Orbit C40-ACB, N.42/CF/ACB, 1-1/8 – 1.5-inch Integrated, Carbon Cap
Axles Front: 150 x 15mm
Rear: 197 x 12mm
Rims/Wheels Alloy 80mm w/Rectangular Holes
Hubs Alloy Disc
Spokes 14g Black Stainless, 32x32, w/Alloy Nipples
Tires Maxxis Colossus, 26 x 4.8, 120 TPI, Folding
Crankset Samox 2-pc Forged
Chainrings 28T
Chain KMC X11El-1 w/MissingLink
Rear Derailleur Shimano XT RD-M8000
Cassette/Rear Cogs Shimano XT CS-M8000, 11-46T- 11-Speed
Shifters Shimano XT, SL-M8000, 11-Speed, Trigger, Right Only, I-Spec II
Handlebars Kore Durox 35mm Riser, 20mm rise x 760mm width
Tape/Grips Q2 Lock-on
Stem Kore Cubix M35, Alloy 3D Forged, Threadless 4-Bolt
Brake Levers Shimano MT501, Servo Wave w/I-Spec II
Brakes Shimano MT501, Hydraulic Disc, Servo Wave, 180/160mm Wave12 Rotors
Saddle WTB Volt Comp
Seat Post Q2 Carbon, 31.6 x 350mm

* Subject to change without notice.
